Induction Brazing
Brazing is joining of similar or dissimilar metal (parent materials) by using heat and braze material (filler material) whose melting temperture is normally above 450 C and below the melting temperature of parent materials being joined.

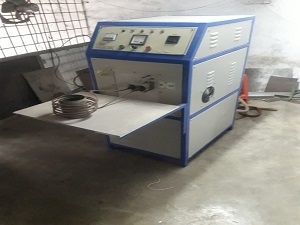

A-one Enterprise brazing machines are made to replace conventional brazing methods, with more reliable / repeatable brazing without flame and smoke.
Brazing temperature can be controlled from 450 C to 1200 C for most of the brazing applications.
- Copper parts for compressors.
- Copper components of transformers.
- Brass components.
- Submersible pump rotors.
- Ring cable lugs.
- Aluminium component joints.
- Soldering of brass components.
- Steel components joints.
- Brazing of storage water heater Elements.
| Uniform heating at desired area provides even flow of filler metal | ||||
 Lesser brazing cost comparing to conventional methods | ||||
| Strong and ductile joints | ||||
| Suitable for dissimilar materials | ||||
| Controlled atmosphere brazing is possible | ||||
| Highly adaptable for automation | ||||
| Eco-friendly due to noiseless and flameless operation | ||||
| No statutory approvals required | ||||
| Lesser risk involved compared to conventional methods | ||||
| Application Specific | ||||
| Auto or manual mode operation | ||||
| Improved power factor | ||||
| Tropicalised design | ||||
| Compact size |
| POWER RANGE | 1-5KW | 5-15KW. | 15-50KW | 50 -200KW |
| FREQUENCY RANGE | 5-600kHz | 01-400kHz | 01-30kHz | 01 – 30kHz |
| ADAPTATION TO CHANGE LOAD CHARECTERISTICS | YES | YES | YES | YES |
| POWER CONTROL MANUAL AUTO AUTO AUTO LOAD SENSED SELF TUNING | MANUAL | AUTO | AUTO | AUTO |
| SIZE (mm) | W-225 B-500 H-430 | W-530 B-640 H-1110 | W-620 B-725 H-1370 | W-1000 B-1090 H-1675 |
| INPUT POWER RANGE | SINGLE PHASE 230V/50Hz. | THREE PHASE 230V/50Hz | THREE PHASE 440V/50Hz | THREE PHASE 440V/50Hz |
In our Endeavour to make better products,A-One Enterprise reserves the right to change any specifications at any moment and without prior notice, to the models (including programming) and their accessories.
Product Details:
| POWER RANGE | 1-5KW | 5-15KW. | 15-50KW | 50 -200KW |
| FREQUENCY RANGE | 5-600kHz | 01-400kHz | 01-30kHz | 01 – 30kHz |
| ADAPTATION TO CHANGE LOAD CHARECTERISTICS | YES | YES | YES | YES |
| POWER CONTROL MANUAL AUTO AUTO AUTO LOAD SENSED SELF TUNING | MANUAL | AUTO | AUTO | AUTO |
| SIZE (mm) | W-225 B-500 H-430 | W-530 B-640 H-1110 | W-620 B-725 H-1370 | W-1000 B-1090 H-1675 |
| INPUT POWER RANGE | SINGLE PHASE 230V/50Hz. | THREE PHASE 230V/50Hz | THREE PHASE 440V/50Hz | THREE PHASE 440V/50Hz |
In our Endeavour to make better products,A-One Enterprise reserves the right to change any specifications at any moment and without prior notice, to the models (including programming) and their accessories.
